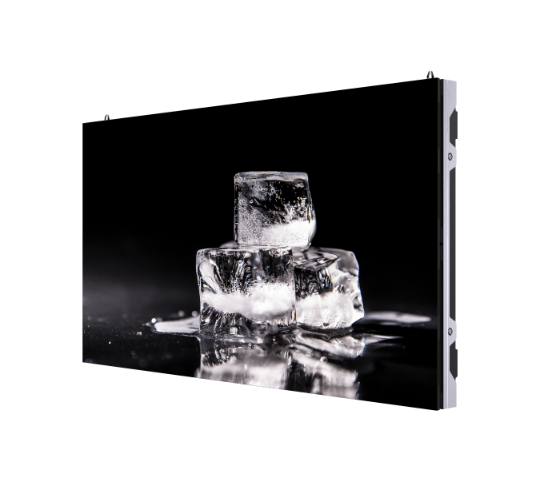

southbound indoor high-end SO-P1.6 LED display module can be widely used in conference rooms, command and dispatch, live studios, monitoring centers, radio stations, school classrooms, exhibition halls, security, stations, airports, hospitals, tourist attractions, TV studios and other high-end scenes.

1. The indoor full-color display effect is more clear and delicate, and the resolution can reach more than 1080P; Achieve high refresh rate, high gray scale and high lamp utilization rate; No residual shadow, anti-” caterpillar “, low power consumption, low surge and other functions;

2. Indoor full-color display is mainly composed of red LED chips, green LED chips and blue LED chips packaged into a pixel matrix, and then fixed to the plastic kit;

3. The indoor full-color display contains a driver chip and an input buffer chip, which can be connected to the LED display control system to display video, images and text information;

4. Through the system control of the driver chip driving red LED, green LED and blue LED, 4,398 billion color changes can be formed;

5. The unit board and box can be spliced horizontally and vertically to form display screens of different sizes;

6. Product features:

High quality lamp, high efficiency lamp brightness utilization rate, while ensuring the service life of the lamp and high-quality plastic parts
High contrast can achieve good display effect
The weight is easy to install and remove
Single point, single lamp maintenance, low cost
Constant current drive LED, uniform light, low power consumption
The driver chip uses SSOP package constant current driver chip.

Product parameters

Screen body technical parameters
Brightness ≥450cd/㎡ Brightness uniformity > 0.95
Screen horizontal viewing Angle 160±10 degrees Screen vertical viewing Angle 160±10 degrees
Best visual distance ≥1.7m indoor use environment
Maximum power per square unit board ≤580W/㎡

Distribution power (maximum power per square ÷78%÷85%) ≤875W/m2
Gray level Red, green, blue 13-14bits each display color 4,398 billion
Frame change frequency ≥60 frames/second refresh frequency 3840Hz
Control mode Computer control, point-by-point one-to-one correspondence, video synchronization, real-time display brightness adjustment 256 manual/automatic
Input signal DVI/VGA/HDMI/DP, composite video signal, S-VIDEO, YpbPr(HDTV)
Service life ≥ 100,000 hours Average trouble-free time ≥ 10,000 hours
Attenuation rate (working for 3 years) ≤ 15% continuous runaway point 0
Discrete runaway point < 0.0001, factory zero Blind spot rate < 0.0003, factory zero
Operating temperature range -20-40℃ Operating humidity range 10%-65%RH (no condensation)
Protection Performance Over temperature/overload/power failure/image compensation/various correction techniques/Over current/Over voltage/lightning protection (optional)
Screen horizontal flatness < 1mm/㎡
Box technical parameters
Box specifications (Length * width * thickness) 640*480*84.5mm (thickness including module, box, connecting piece)
Box resolution 384*288=110592 Dots
The box area is 0.307 square meters
Box weight 7.67kg± 0.05kg
Maximum power consumption (unit board power x number of unit boards in a box) ≤178W
Average power consumption (1/3 of maximum power) ≤59W
Distribution power (power utilization rate 78%, i.e. maximum power ÷78%) ≤228W
Module technical parameters
Image decimal spacing 1.6mm pixel density 360000Dots/㎡
The pixel constitutes the 1R1G1B lamp package SMD1212
Size (Length * width * thickness) 320*160*14.5mm Weight 0.47kg±0.01kg
The resolution of the integrated unit board is 192*96=18432Dots
Input voltage (DC) 4.5±0.1V Maximum current ≤6.6A
Unit board power ≤30W Drive mode 1/32 constant current drive
Number of 40A power supply with unit boards 3-4 50A power supply with unit boards 5-6
Number of 40A PFC power modules 5-6 Number of 80A PFC power modules 8-10 Number of unit modules
